Flat roof insulation with flapor

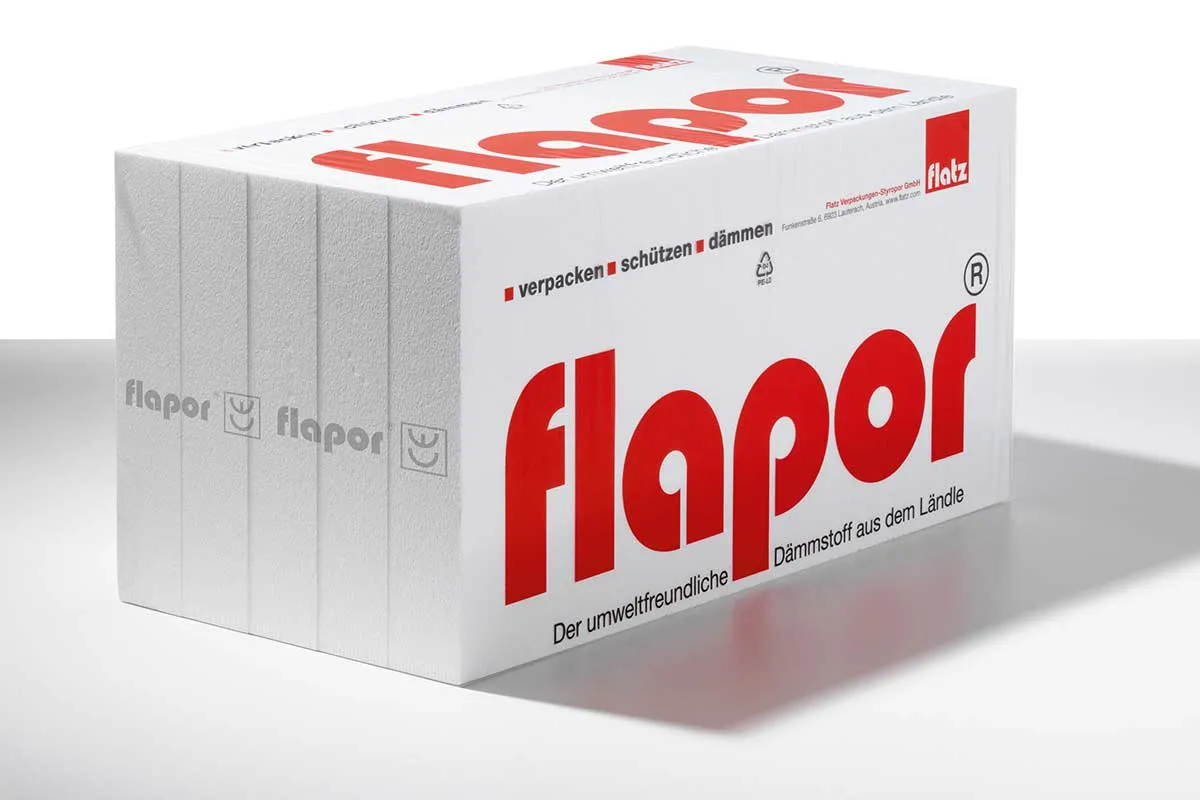

A flat roof can be used for a number of things: For example, to create a valuable, green space in which to relax. With flapor you can enjoy the thermal insulation you need. The flapor thermal insulation boards EPS-W25 and EPS-W30 have proven themselves on a solid concrete base for decades and provide optimum impermeability along with outstanding insulation values when used on flat roofs.

When in use, the substructure must have a consistent slope of at least 1° (2%). Non-sloping roofs do not comply with ÖNORM B 2220.

The slope can be produced by the following measures:

• inclined design of the substructure
• special flapor sloping insulation boards
• sloping concrete

flat roof with sloping insulation boards.

vapor barrier

fleece or protective drainage membrane

protective surface layer (round pebbles, concrete slab)

roof membrane

flapor sloping insulation boards EPS-W25, EPS-W30

substructure
